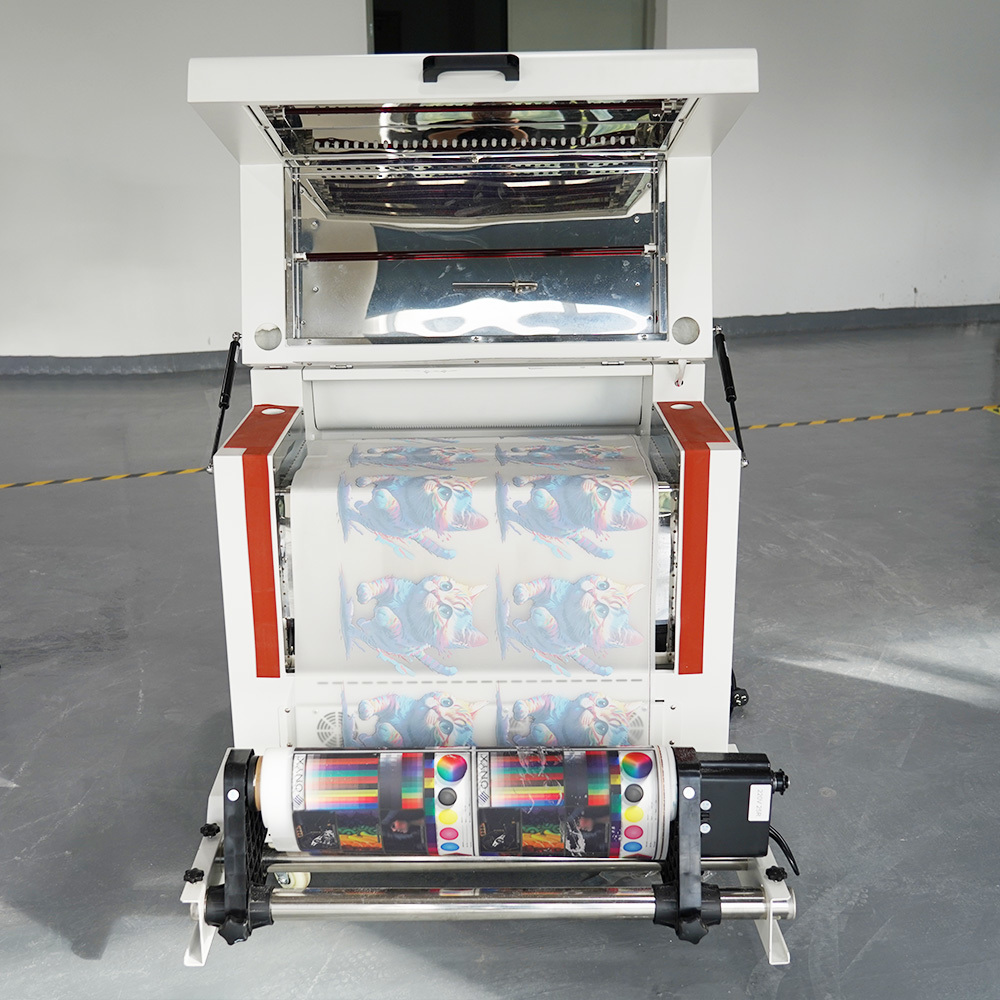

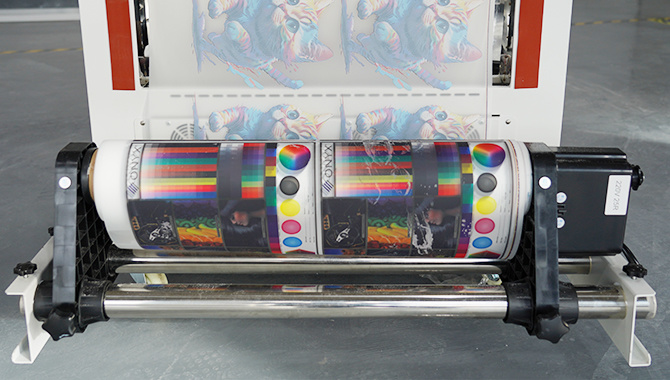

Diffuse induction automatic rolling-up
Accurately control the rolling-up tension, avoiding the problem of inconsistent elasticity caused by traditional manual rolling-up, ensuring that the DTF film remains flat and wrinkle free during the rolling-up process, and avoiding pattern deformation caused by manual operation
Product Detail

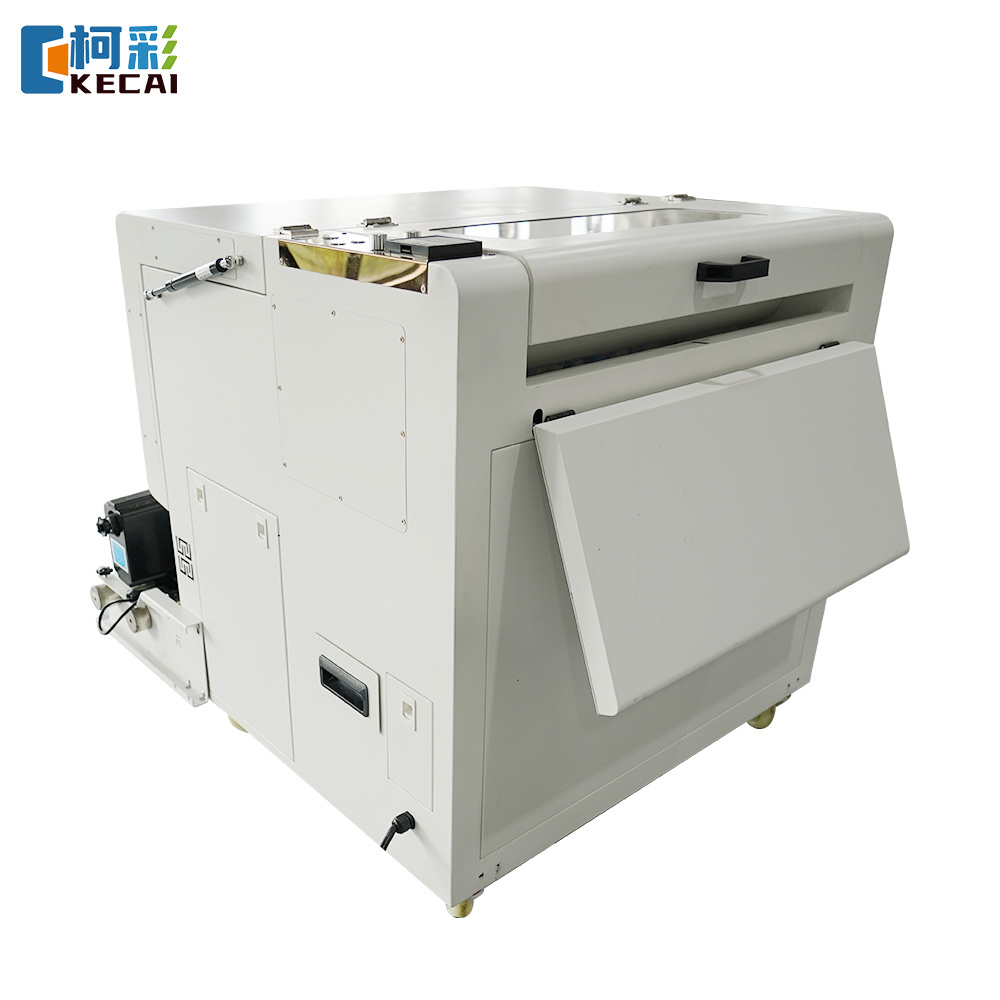

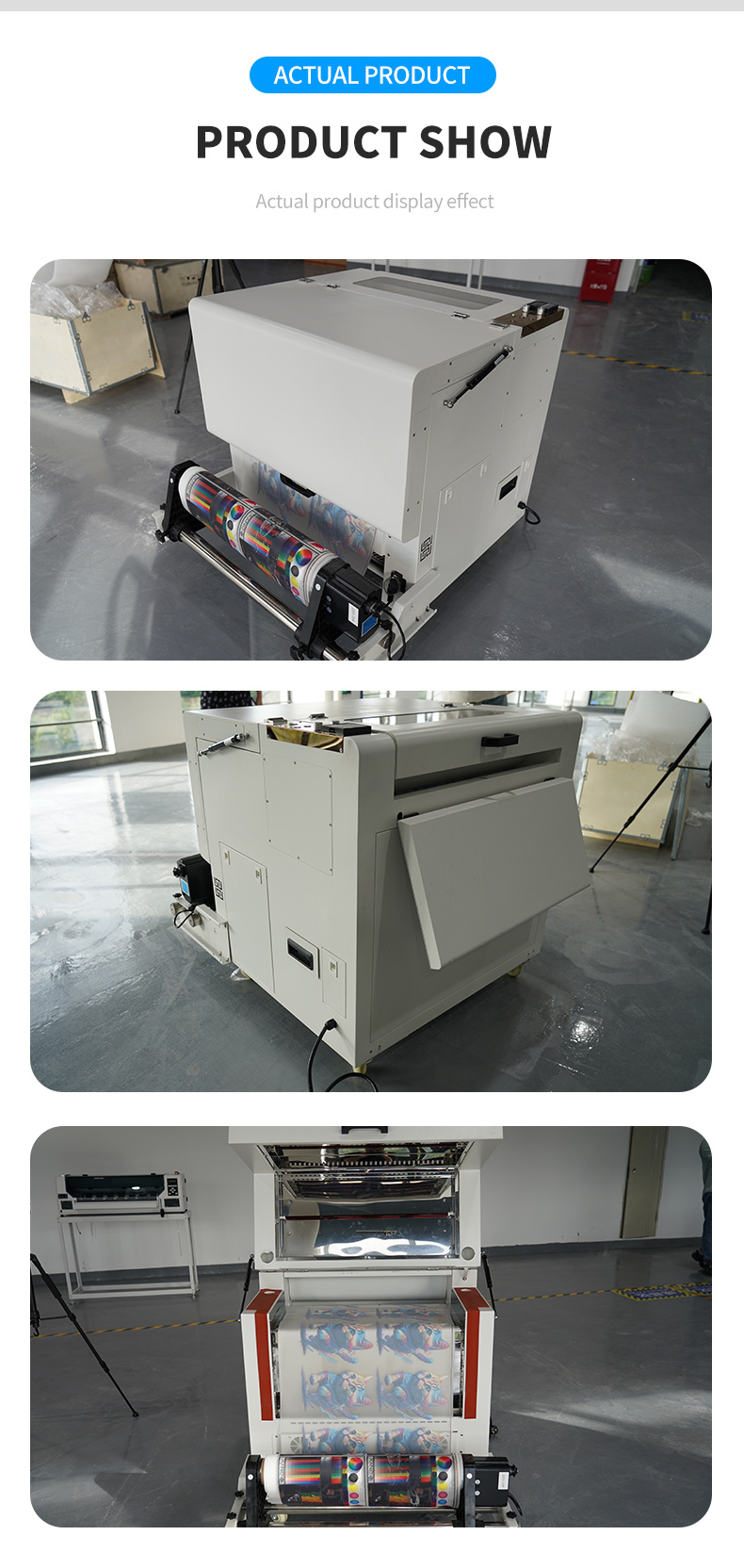

Product Name | A1 DTF Powder Shaking Machine | |||
Drying width | 0-650mm | |||
Pre-heating stroke | 300mm | |||
Baking stroke | 780mm | |||
Adaptable voltage | 110-220V/50-60HZ | |||
Peak current | 110V: 25A/220V: 13A | |||
Rated power | 2700W | |||
Winding method | Automatic winding by diffuse sensing | |||
Heating method | Four 680mm halogen infrared heating tubes | |||

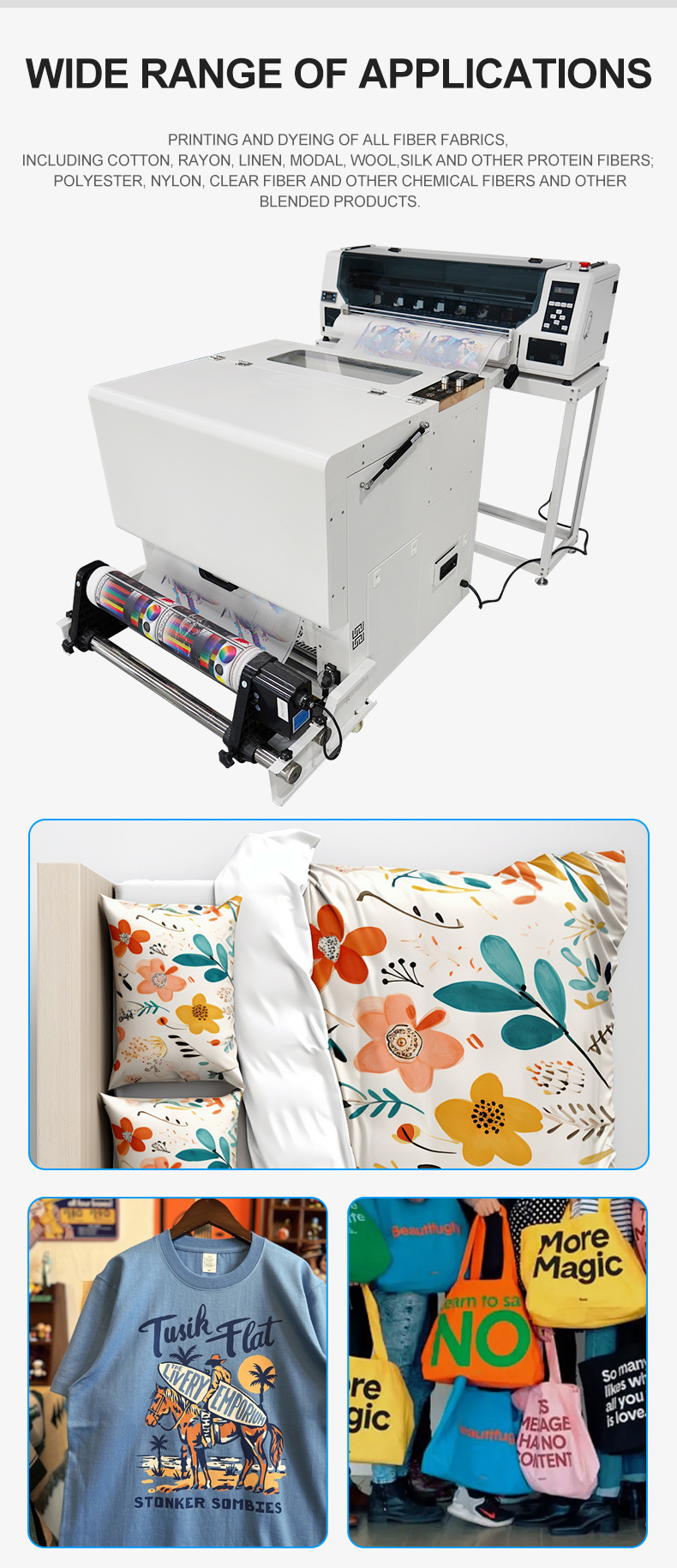

Usage | Cotton fabric/leather/chemical fiber/nylon /PVC/EVA, etc | |||
Machine dimensions (unit: mm) | 800*860*850MM | |||
Net weight | 85KG | |||
Machine colors | black, gray, white. Custom colors and styles are supported. | |||

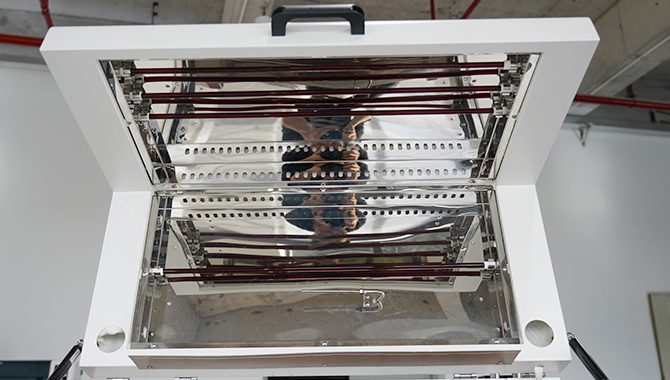

Halogen infrared heating tube
With 4pcs 680mm halogen infrared heating tubes. The halogen infrared heating tube adopts a sealed structure and is filled with halogen elements to extend the life of the heating wire. The electric thermal conversion efficiency is as high as 70%, which is about 30% more energy-efficient than traditional heating elements. And it has high thermal efficiency, suitable for rapid heating needs.

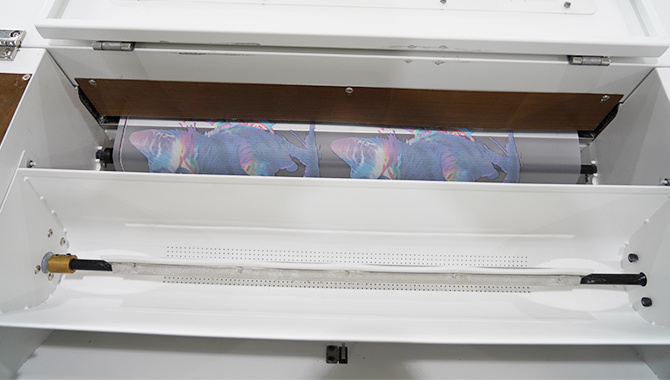

Return powder function
Spray powder as needed. If there is too much powder on the film, the powder spraying motor will automatically stop. If there is not much powder, the motor will work. Combined with the powder blocking plates at both ends, the powder leakage is very small
Triple correction positioning
Triple correction positioning to prevent film deviation. The powder blocking plate is movable and has a correction function. There is a positioning rod both above the shaking powder plate and at the film outlet, which can be adjusted into a line to make the rolled material very neat

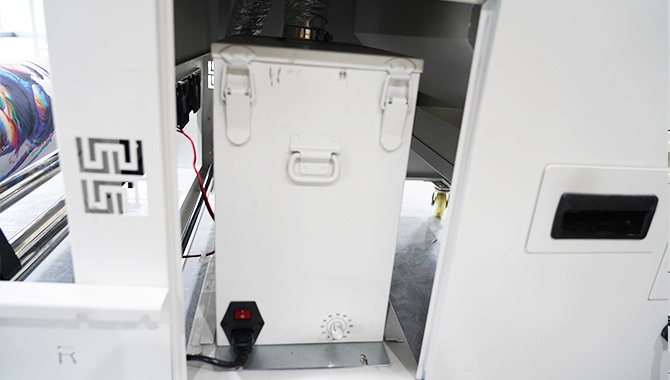

Self with oil-water separator and oil fume purifier
The machine comes with an oil-water separator and oil fume purifier inside, eliminating the need for an external purifier. It also has fewer exhaust pipes and electrical plugs, making it more aesthetically pleasing and practical

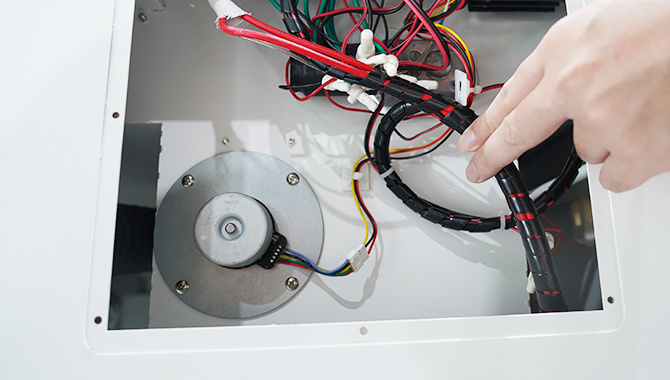

Brand brushless motor
Adopting branded brushless motors, with low noise, low power consumption, and long service life. Brushless motors eliminate carbon brush friction through electronic commutation technology, and do not generate electrical sparks or electromagnetic interference during operation, avoiding the electromagnetic interference and equipment abnormalities caused by traditional brushed motors due to electrical sparks.
FAQ
Q1: What can you buy from us?
A1: DTF Printer,UV Printer,DTF And UV Ink,DTF Oven,Heat Melt Powder,Laminating Machine,Heat Press Machine.
Q2: How can we guarantee quality?
A2: Always a pre-production sample before mass production;Always final Inspection before shipment;
Q3: Can you provide sample test printing service? I want to see the real printing process & the printing effect.
A3: Of course you can.Please send us the picture which you want to print.We will send you the printing process, the printing effect video.
Q4.Do you support customization?
A4:Yes, customization like packaging, logo, colour, etc.
Q5: What kind of warranty service do you provide?
A5:1 year warranty (not including printhead),online tech support and service.
Q6: How to install and use Desktop DTF Printer?
A6: The machine is very simple, have been installed. Only need to connect to the computer, install the printing software, the machine and then install the ink. After purchasing the machine, our technician will contact you and send you all the instructions and videos of the installation and use.
Q7: How much is the shipping cost? How do l import the purchase?
A7:We offer door to door shipping. The printer + oven is very small, only about 0.3 cubic meters. The shipping cost to most countries is around 200-500 USD. This includes shipping, import, customs, etc.You can consult our business manager to give you specific shipping prices depending on your country location.
Q8: How do I become your agent?
A8: We have specialized in producing personalized printing equipment for 12 years.d If you buy more than 3 units of the same model at one time,you have the opportunity to become our agent. You can contact our business manager for details.
KECAI A1 Automatic Shaker Powder Shaker Machine for DTF Printer
Product Features ■This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.
