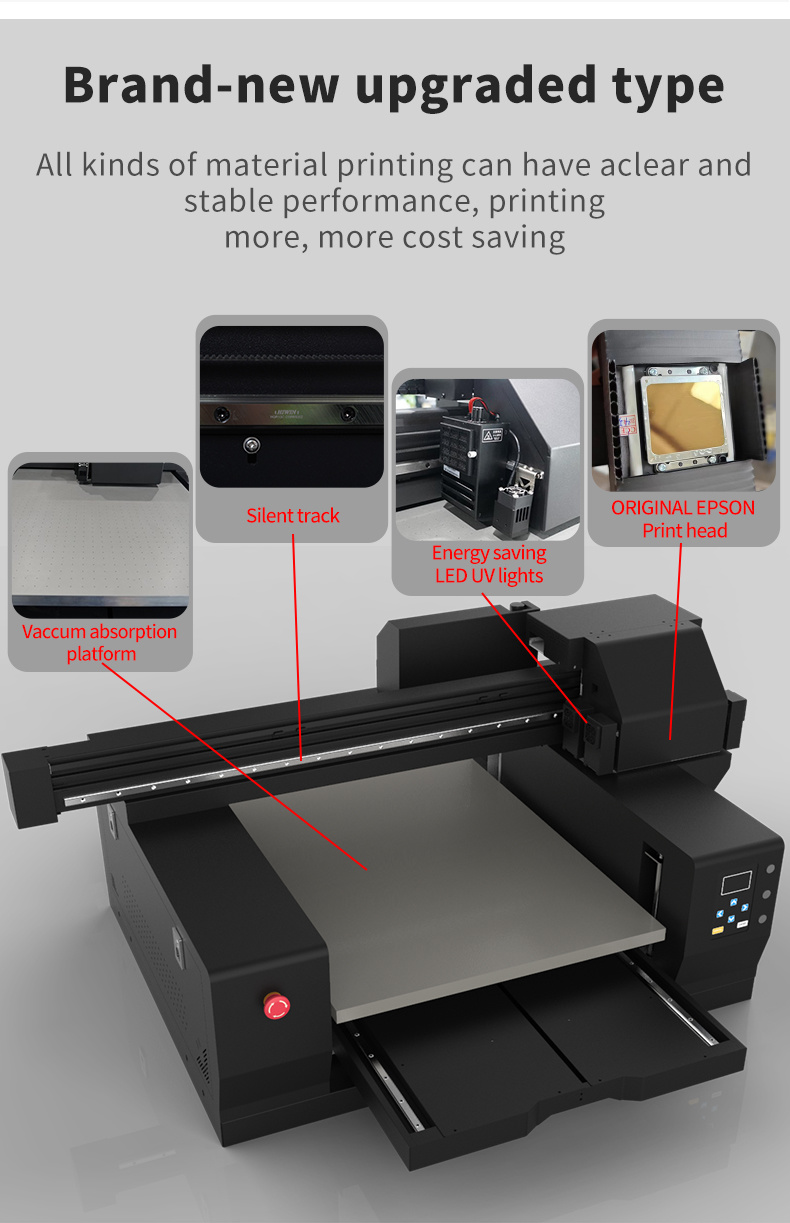

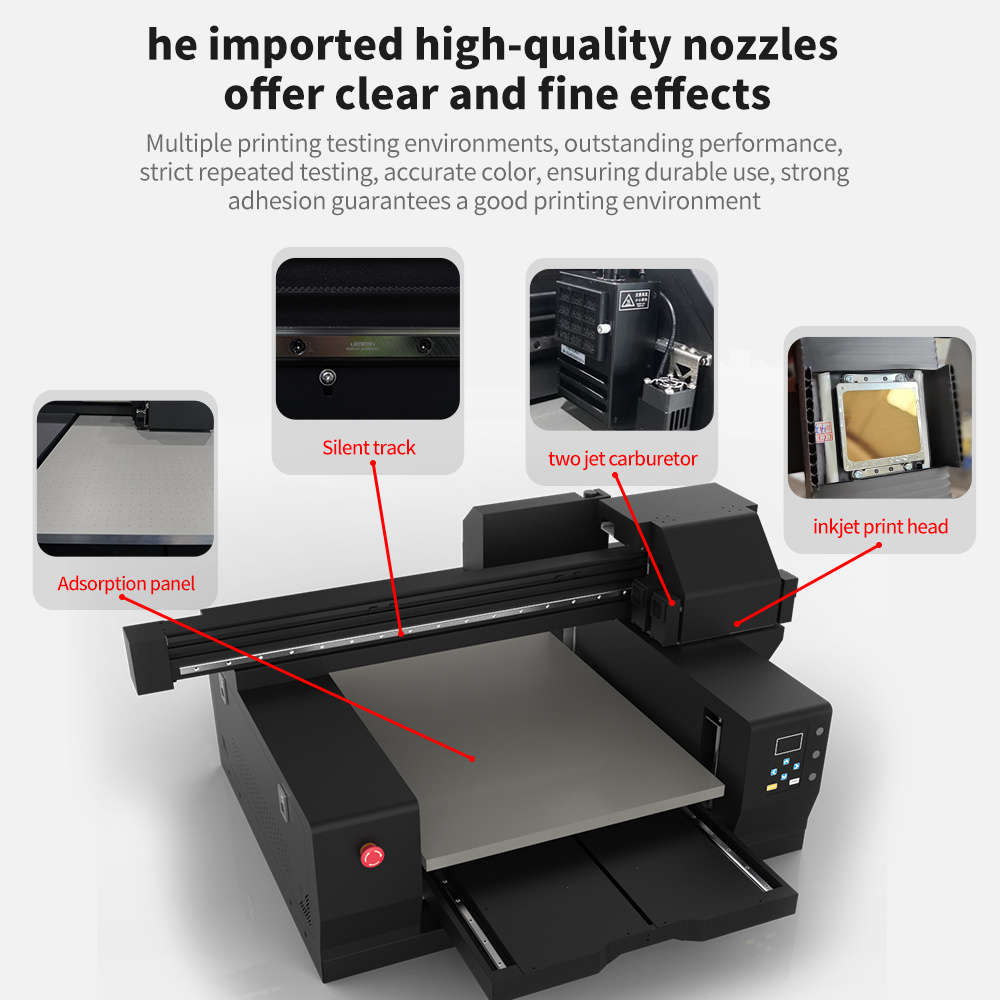

New 5th Generation Epson Original XP600 Print Head
The print head is imported from Japan. The original Epson printhead technology minimizes clogging risks while maintaining optimal resolution for detailed designs.
Product Detail

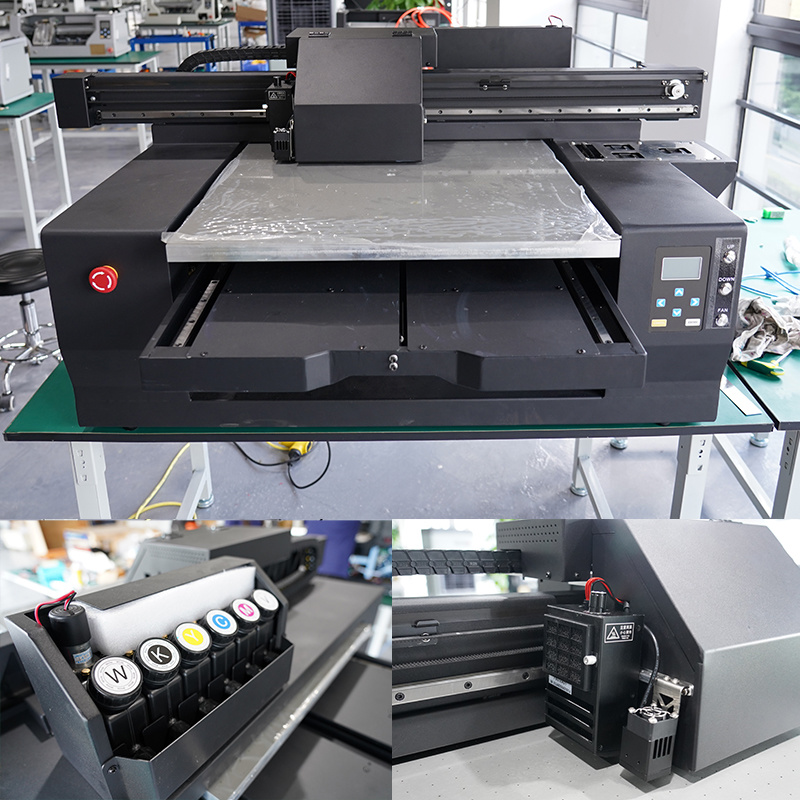

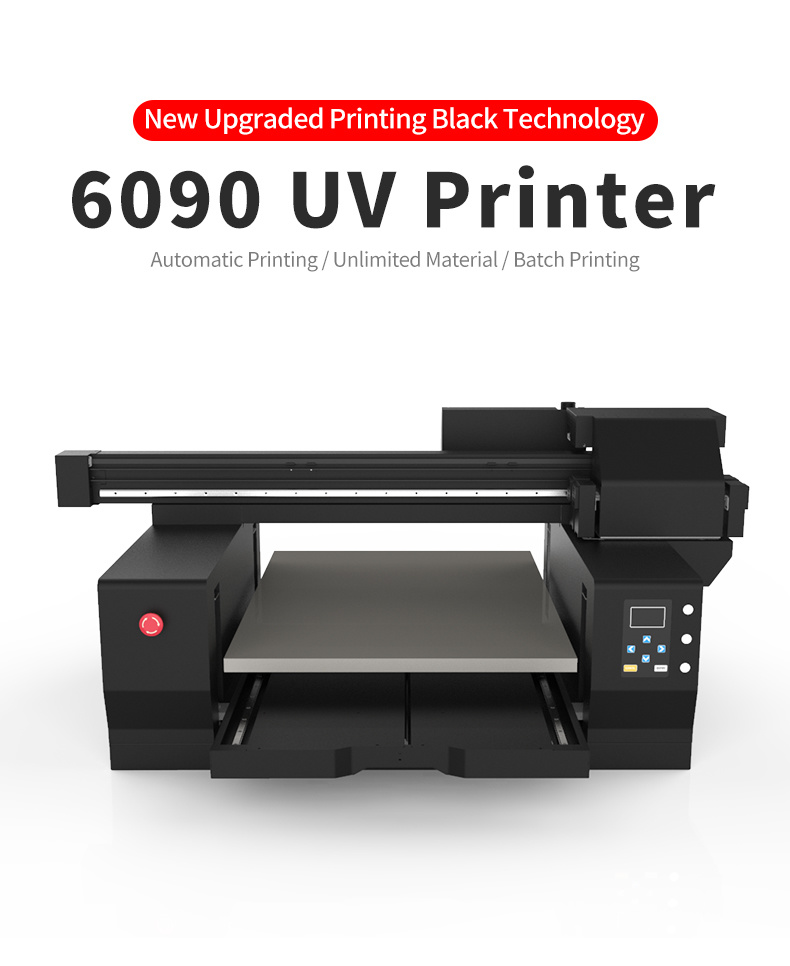

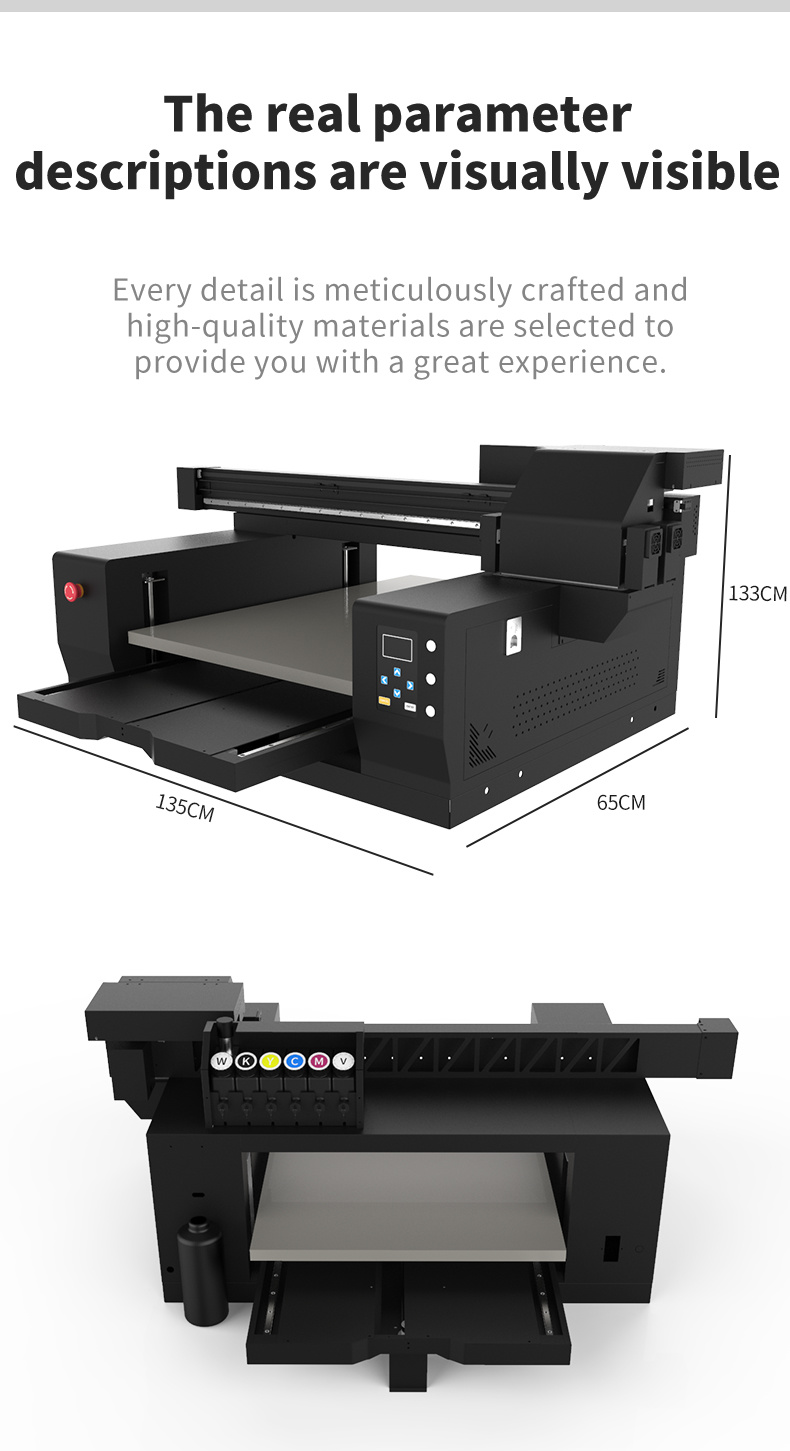

Product name | 6090 UV printer |
Max Print size | 600mm*900mm |
Max platform height | 230mm |
Print speed | 8-15 square meters per hour |
Print accuracy | 6/8/12/16/32PASS |
Print resolution | 360/720/1440/2880/5760DPI |
Ink supply method | Continuous supply system |
Ink consumption | 1 milliliter per square meter |
Net weight of product | 93kg |
Curing system | water-cooling |
UV lamp power | 200W |
Platform driven | Servo/stepper drive |
Nozzle protection | Automatic protection device |
Lifting function | Lifting platform |
Nozzle cleaning | Automatic cleaning/automatic flash spraying/automatic moisturizing |
Transmission mode | X-axis single guide rail+motor Y-axis double guide rail+motor |
work environment | Temperature 0-40°C, humidity 10-40 |
Printing direction | Unidirectional/Bidirectional |

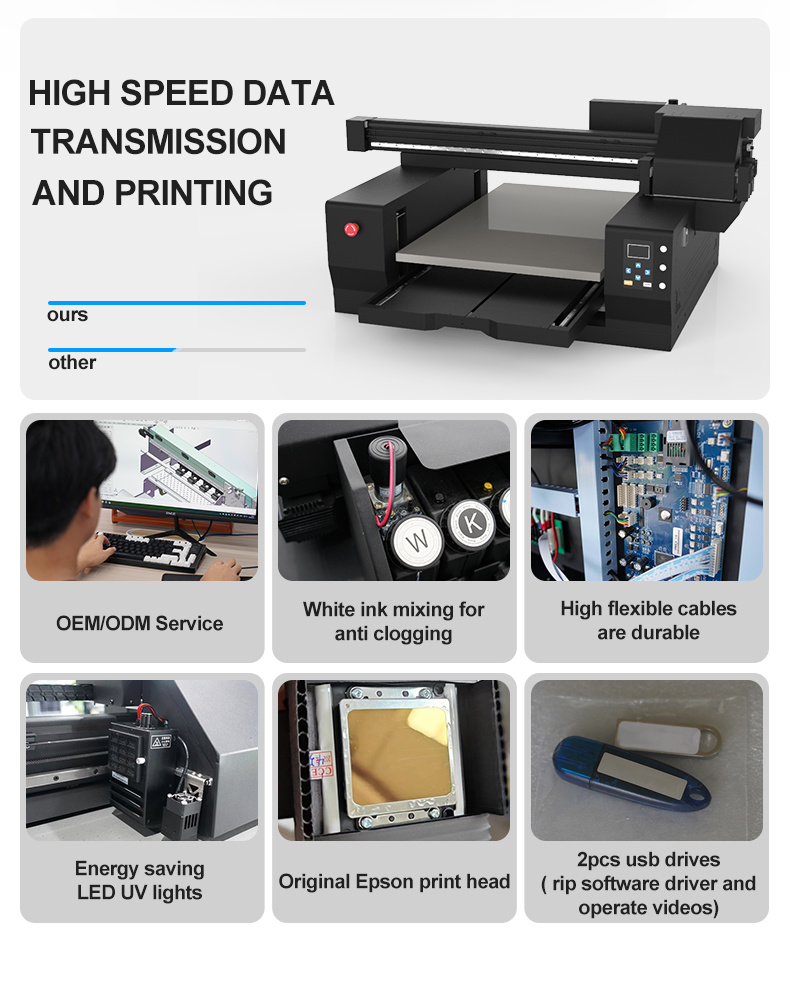

data transfer | High speed USB |
Print colors | White + color + glossy oil |
Power supply/plug | 220V/AC110 optional power plug |
Ink type | UV ink/food ink |
Nozzle type | Epson XP600 |
File format | TFF/BMP/PDF/EPS/JPI/CAD |
Color configuration | CMYK+W+V |
Ink antifreeze | Equipped with heating function |

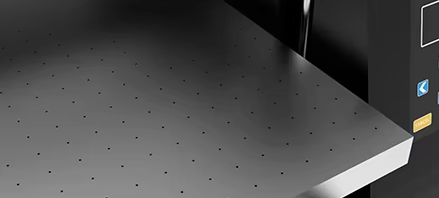

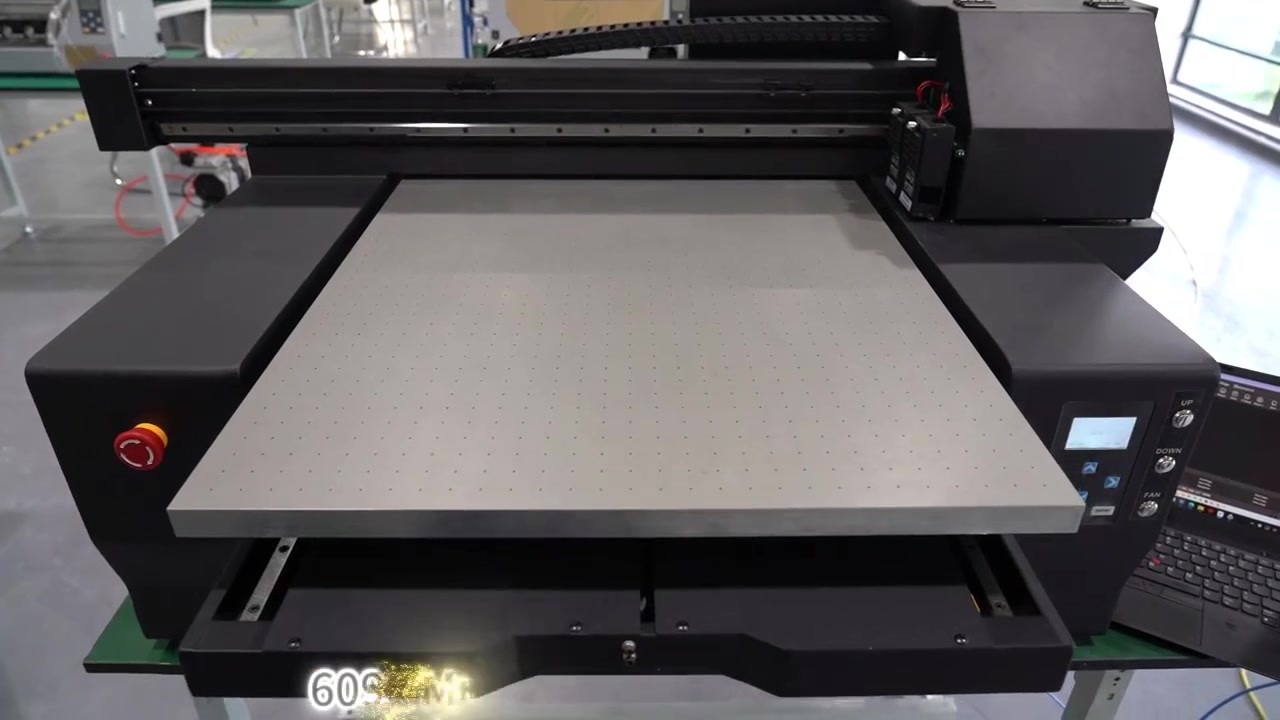

Vacuum Table
PTEF high quality 60*90cm Vacuum table with 36mm thickness, can print on paper, UV DTF AB FILM, golden silver film, leather and sheet etc.

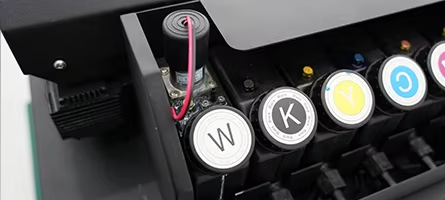

White Ink Stirring
White ink stirring system can help white head clog, and the stirring frequency can be set up in system.

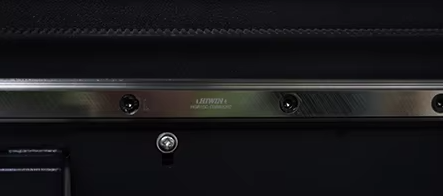

HIWIN Silent Guide Rails
The HIWIN guide rails from Taiwan. HI-WIN 3.5 cm straight square rail on X axis which very silence and firm even decade using.

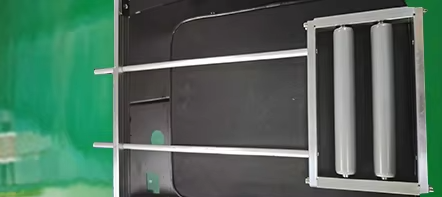

Support Rotary and Flatbed Printing
Not only can print on flat materials like phone case, metal, glass, it also can directly print on bottles, cylinder with rotary device.
FAQ
1. who are we?
We are based in Guangdong, China, sell to Domestic Market(60.00%),North America(20.00%),Western Europe(15.00%),Eastern Europe(5.00%). about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Plate Hot Stamping Machine; Offset Hot Stamping Printer, UV Printer
4. why should you buy from us not from other suppliers?
1、The company integrates research and development,production and sales as an integrated business model,which greatly reduces consumers' purchase of finished products.
2、Short production time and quick cycle of large goods.
3、Professional after-sales
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,Western Union,Cash;
Professional Technical Support Capabilities

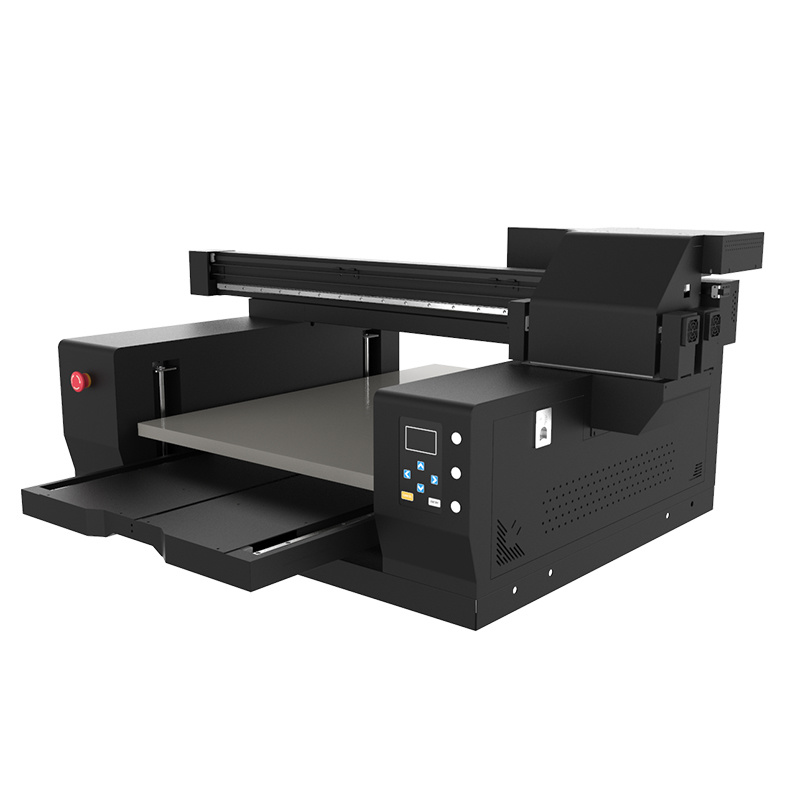

KECAI 6090 Three XP600 Printhead Flatbed UV Dtf Printer
Product Features ■UV printer is a high-tech, plate free, full-color digital printing machine that is not limited by materials. Color photo level printing can be applied to T-shirts, sliding doors, cabinet doors, sliding doors, glass, panels, various signs, crystals, PVC, acrylic, metal, plastic, stone, leather, and other surfaces. ■UV printer is a high-tech, plate free, full-color digital printing machine that is not limited by materials. Color photo level printing can be applied to T-shirts, sliding doors, cabinet doors, sliding doors, glass, panels, various signs, crystals, PVC, acrylic, metal, plastic, stone, leather, and other surfaces.
