New 5th Generation Epson Original XP600 Print Head
The print head is imported from Japan. The original Epson printhead technology minimizes clogging risks while maintaining optimal resolution for detailed designs.
Product Detail

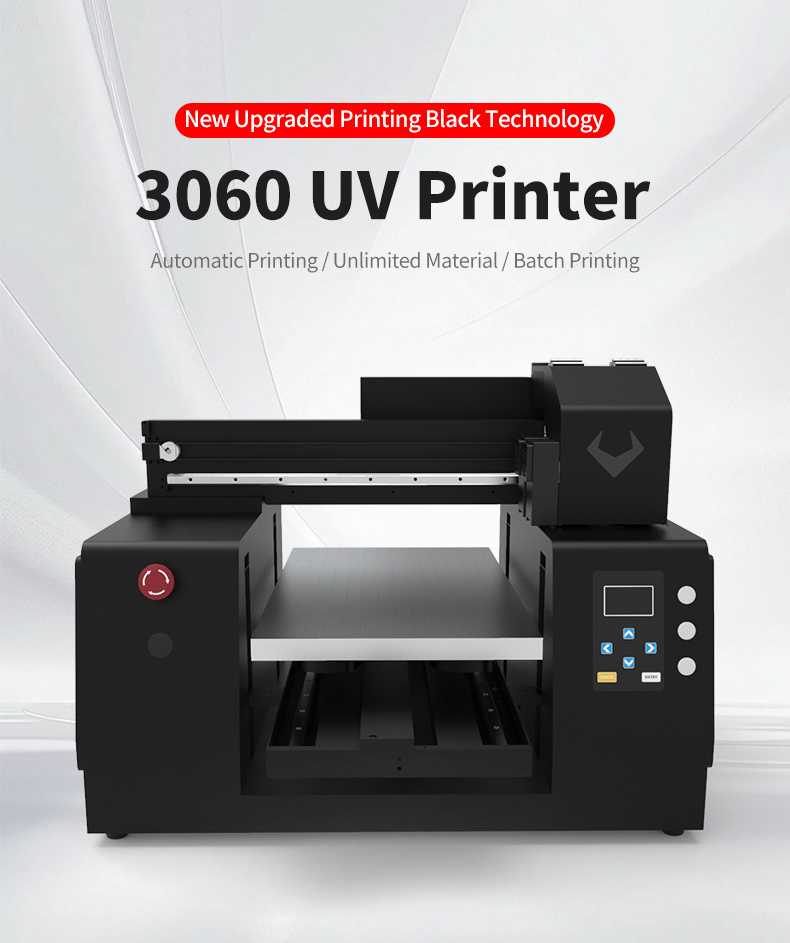

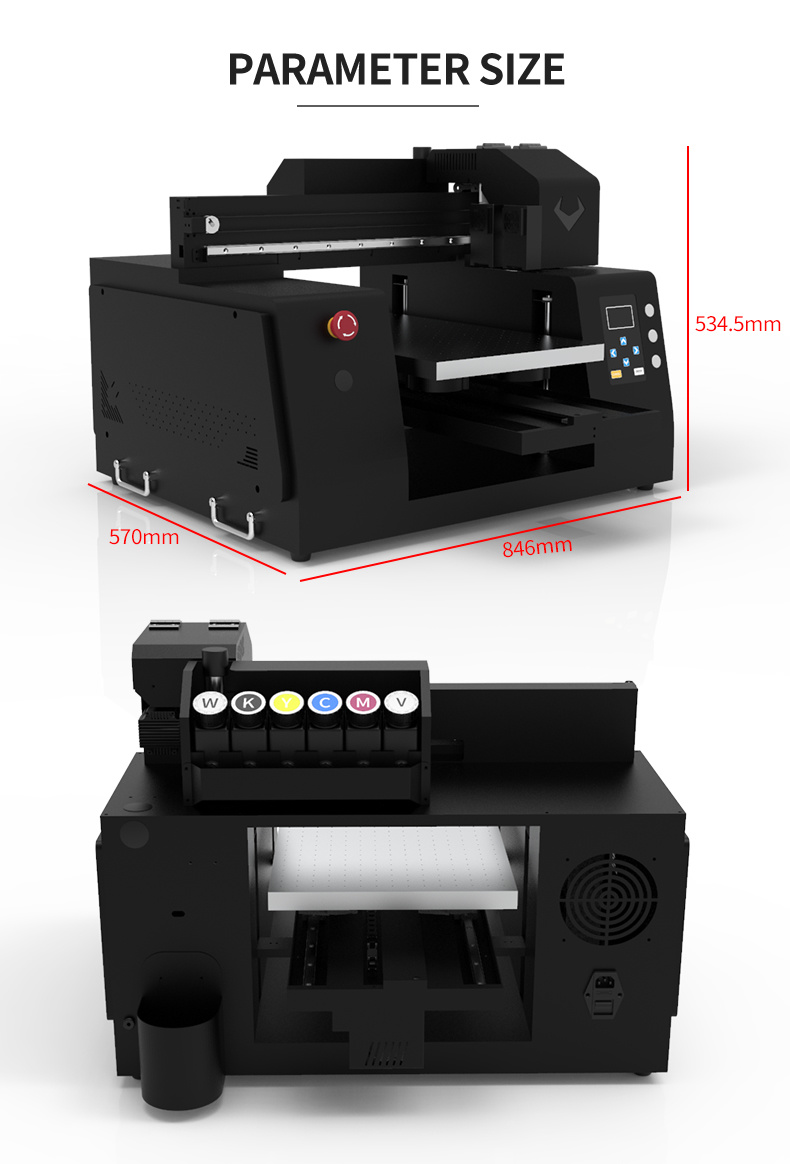

Product name | 3060 UV Printer |
Max Print size | 300mm*600mm |
Max platform height | 250mm |
Print speed | 6-8 square meters per hour |
Print accuracy | 6/8/12/16/32PASS |
Print resolution | 360/720/1440/2880DPI |
Ink supply method | Continuous supply system |
Ink consumption | 1 milliliter per square meter |
Net weight of product | 56kg |
Curing system | Air-cooled |
UV lamp power | 80W |
Platform driven | Servo/stepper drive |
Nozzle protection | Automatic protection device |
Lifting function | Lifting platform |
Nozzle cleaning | Automatic cleaning/automatic flash spraying |
Transmission mode | X-axis single guide rail+motor Y-axis double guide rail+motor |
work environment | Temperature 0-40°C, humidity 10-40 |
Printing direction | Unidirectional/Bidirectional |
data transfer | High speed USB |
Print colors | White + color + glossy oil |
Power supply/plug | 220V/AC110 optional power plug |
Ink type | UV ink/food ink |
Nozzle type | 2PCS Epson XP600 |
File format | TFF/BMP/PDF/EPS/JPI/CAD |
Color configuration | CMYK+W+V |

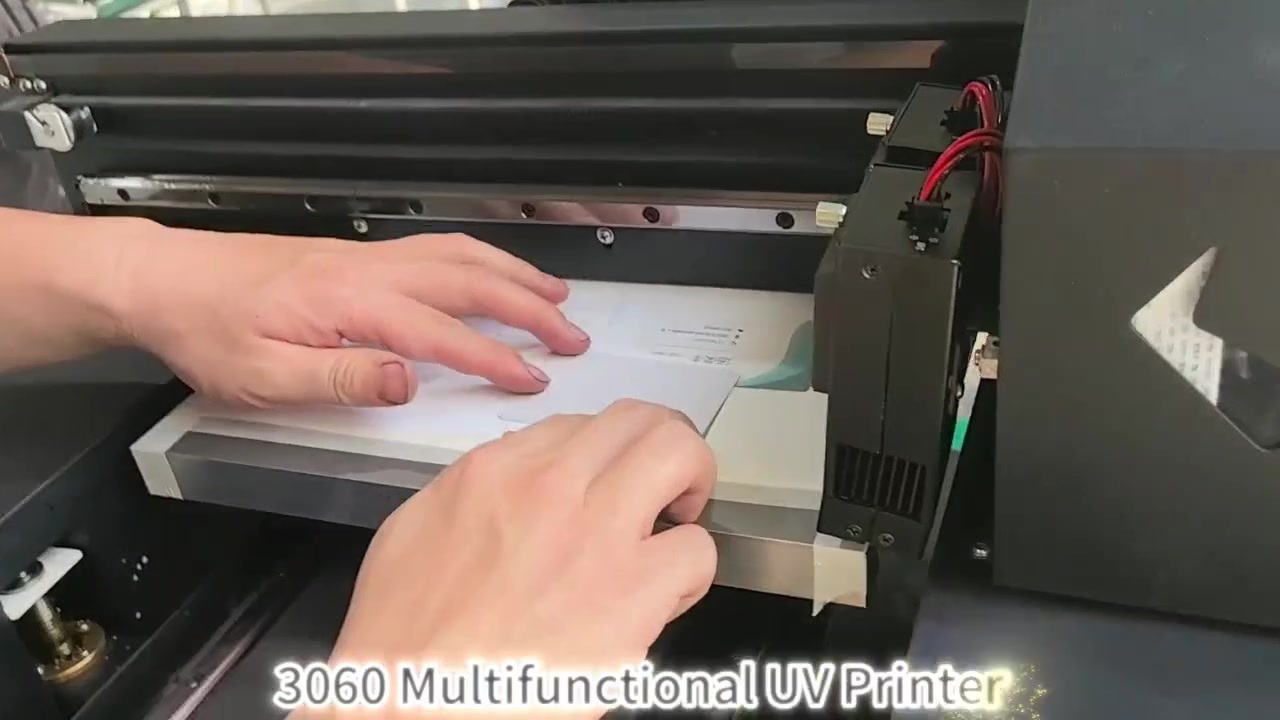

Vacuum Table
PTEF high quality A3 30*60cm Vacuum table with 36mm thickness, can print on paper, UV DTF AB FILM, golden silver film, leather and sheet etc.

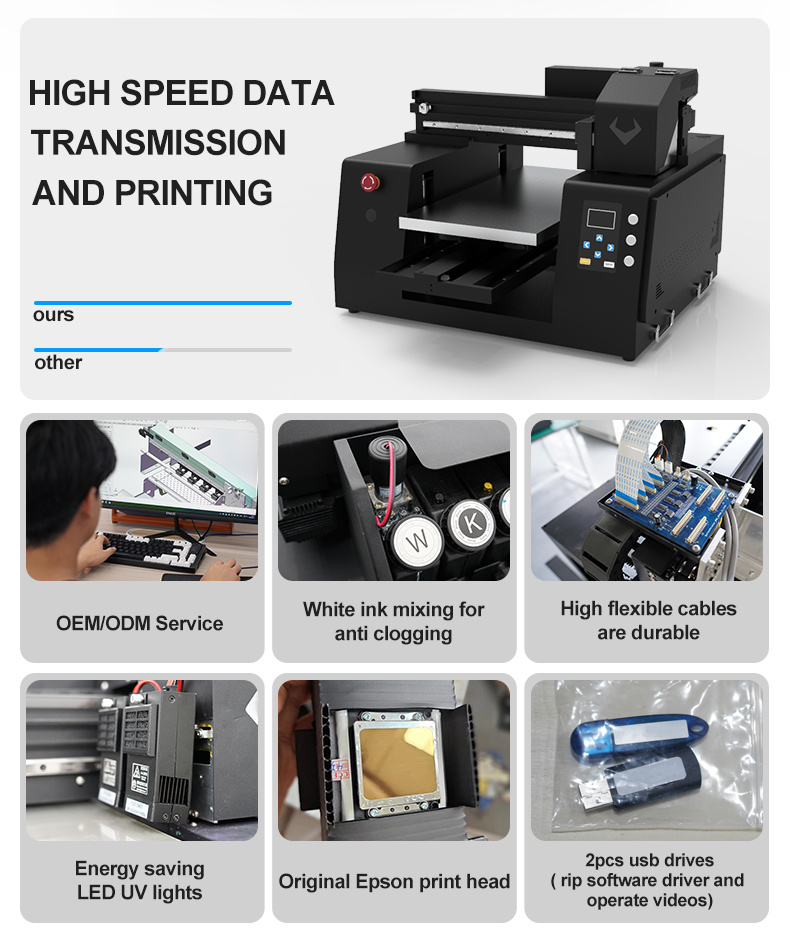

White Ink Stirring
White ink stirring system can help white head clog, and the stirring frequency can be set up in system.
HIWIN Silent Guide Rails
The HIWIN guide rails from Taiwan. HI-WIN 3.5 cm straight square rail on X axis which very silence and firm even decade using.
Support Rotary and Flatbed Printing
Not only can print on flat materials like phone case, metal, glass, it also can directly print on bottles, cylinder with rotary device.
UV Led Curing System
Working time is longer than 20000 hours,energy conservation and environment protection
Servo Motor
Integrated design, smaller size lower noise and heating
Strong anti-interference capability, smoother operation
Aluminium CNC Cap Station
Aluminium CNC cap station is more longer life and easy to operate, which is all in one auto up and down.
Automatically printhead cleaning and moisturizing.
FAQ
Q1: What can you buy from us?
A1: Inkjet Printer,DTF Printer,UV Printer,DTF And UV Ink,DTF Oven,Heat Melt Powder,Laminating Machine,Heat Press Machine.
Q2: How can we guarantee quality?
A2: Always a pre-production sample before mass production;Always final Inspection before shipment;
Q3: Can you provide sample test printing service? I want to see the real printing process & the printing effect.
A3: Of course you can.Please send us the picture which you want to print.We will send you the printing process, the printing effect video.
Q4.Do you support customization?
A4:Yes, customization like packaging, logo, colour, etc.
Q5: What kind of warranty service do you provide?
A5:1 year warranty (not including printhead),online tech support and service.
Q6: How to install and use Desktop DTF Printer?
A6: The machine is very simple, have been installed. Only need to connect to the computer, install the printing software, the machine and then install the ink. After purchasing the machine, our technician will contact you and send you all the instructions and videos of the installation and use.
Q7: How much is the shipping cost? How do l import the purchase?
A7:We offer door to door shipping. The printer + oven is very small, only about 0.3 cubic meters. The shipping cost to most countries is around 200-500 USD. This includes shipping, import, customs, etc.You can consult our business manager to give you specific shipping prices depending on your country location.
Q8: How do I become your agent?
A8: We have specialized in producing personalized printing equipment for 12 years.d If you buy more than 3 units of the same model at one time,you have the opportunity to become our agent. You can contact our business manager for details.

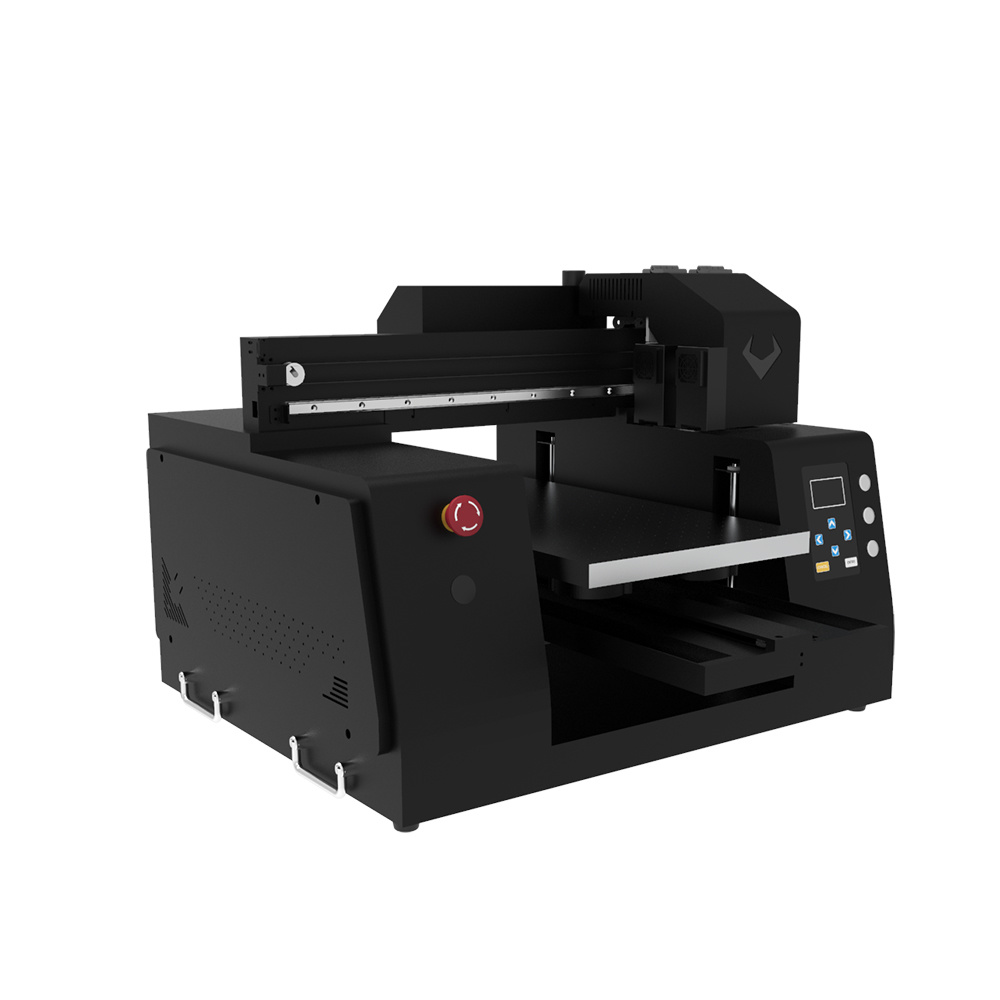

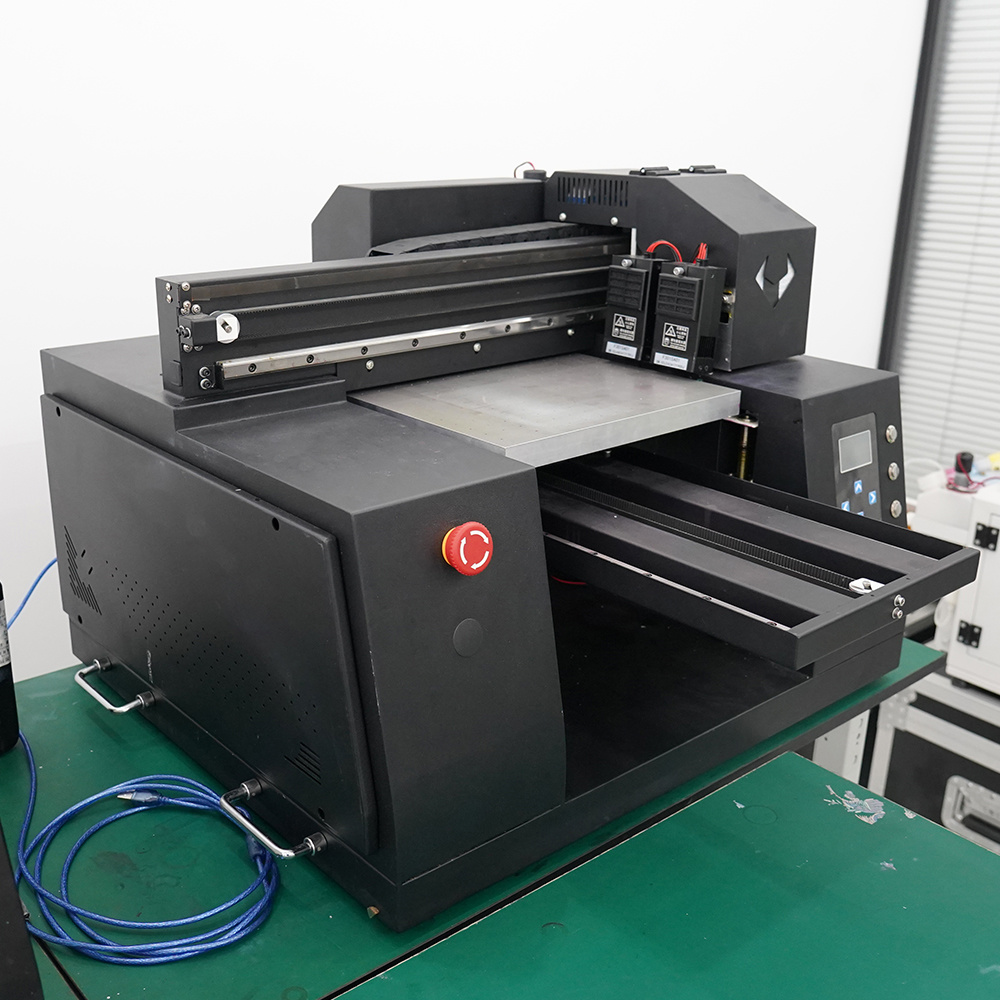

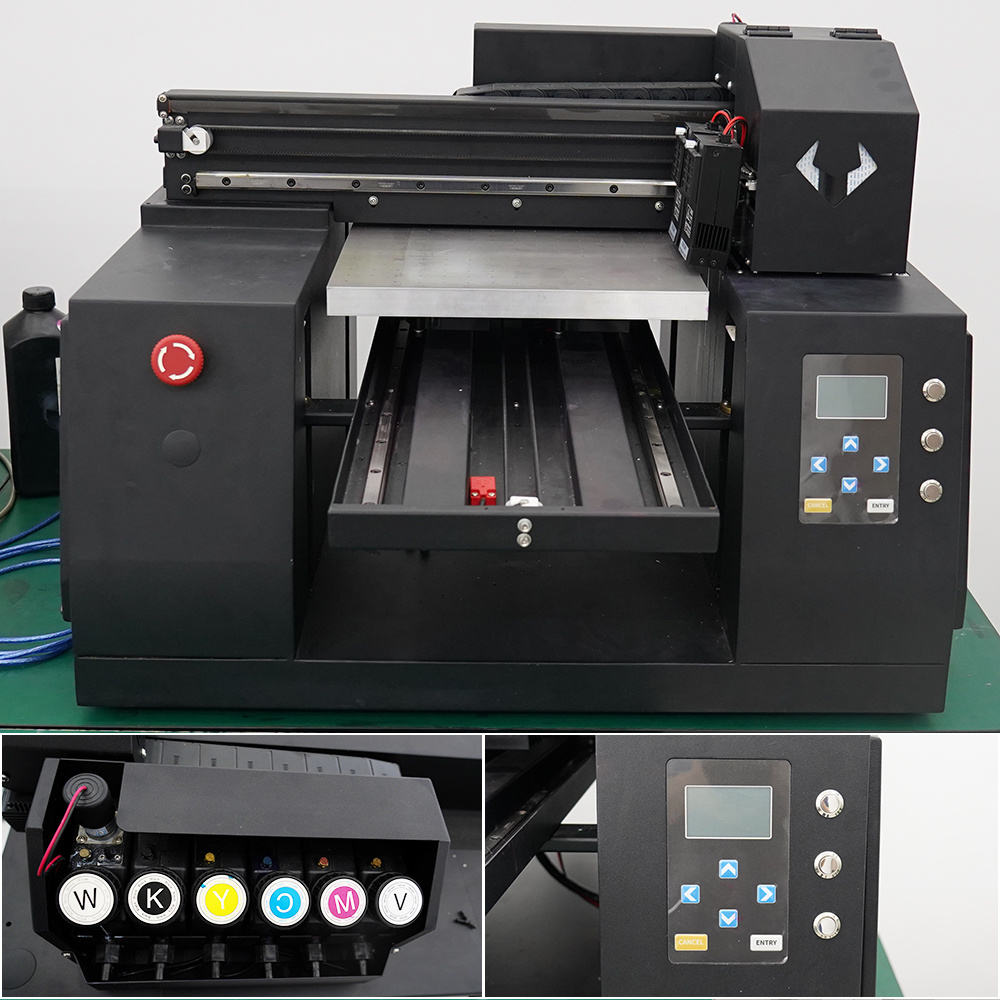

KECAI 3060 Fully Automatic Colorful UV Flatbed Printing Machine
Product Features ■UV printer is a high-tech, plate free, full-color digital printing machine that is not limited by materials. Color photo level printing can be applied to T-shirts, sliding doors, cabinet doors, sliding doors, glass, panels, various signs, crystals, PVC, acrylic, metal, plastic, stone, leather, and other surfaces. ■No need for plate making to complete printing in one go, beautiful and rich colors, wear-resistant, UV resistant, simple and convenient operation, fast printing image speed, fully in line with industrial printing standards.
