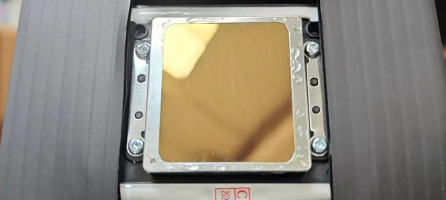

New 5th Generation Epson Original XP600 Print Head
The print head is imported from Japan. The original Epson printhead technology minimizes clogging risks while maintaining optimal resolution for detailed designs.
Product Detail
|
Product name
|

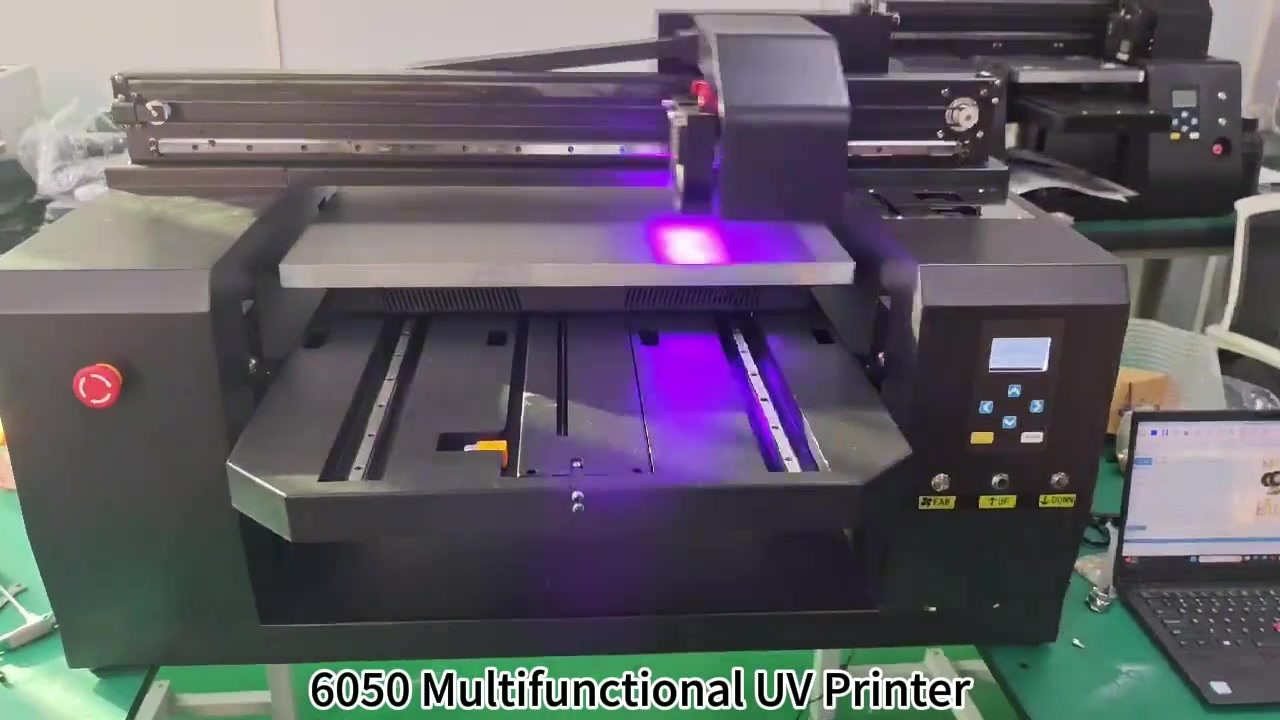

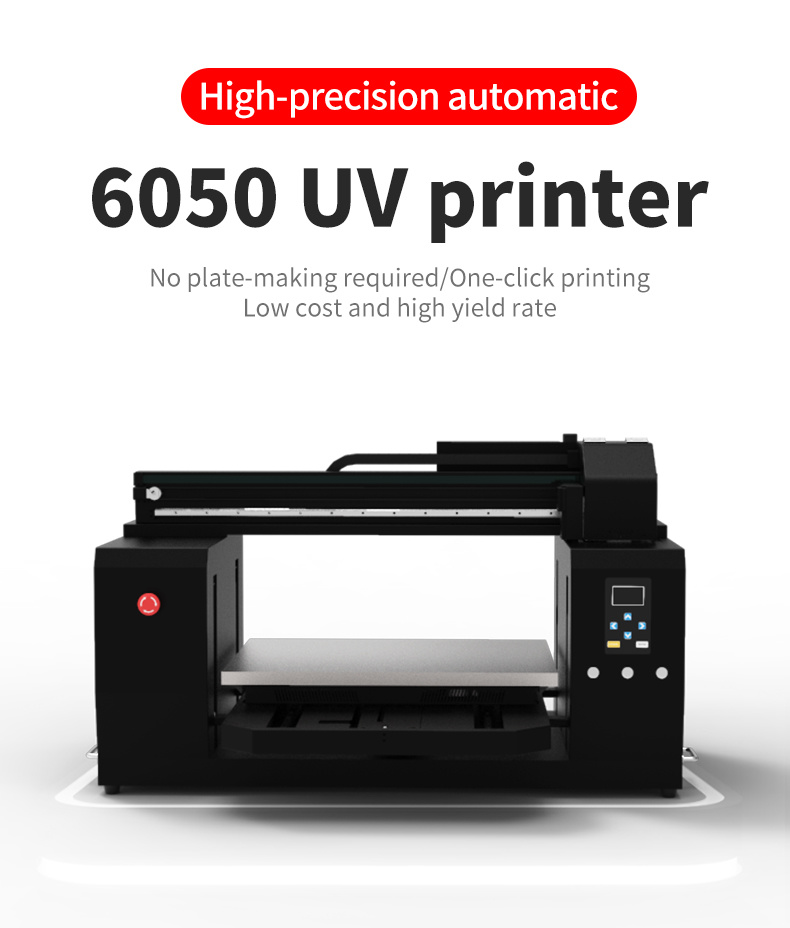

6050 UV Printer
|
|
Max Print size
|
600mm*500mm
|
|
Max platform height
|
260mm
|
|
Print speed
|
6-10 square meters per hour
|
|
Print accuracy
|
6/8/12/16/32PASS
|
|
Print resolution
|
360/720/1440/2880DPI
|
|
Ink supply method
|
Continuous supply system
|
|
Ink consumption
|
1 milliliter per square meter
|
|
Net weight of product
|
73kg
|
|
Curing system
|
water-cooling
|
|
UV lamp power
|
100W
|
|
Platform driven
|
Servo/stepper drive
|
|
Nozzle protection
|
Automatic protection device
|
|
Lifting function
|
Lifting platform
|
|
Nozzle cleaning
|
Automatic cleaning/automatic flash spraying/automatic moisturizing
|
|
Transmission mode
|
X-axis single guide rail+motor Y-axis double guide rail+motor
|
|
work environment
|
Temperature 0-40°C, humidity 10-40
|
|
Printing direction
|
Unidirectional/Bidirectional
|
|
data transfer
|
High speed USB
|
|
Print colors
|
White + color + glossy oil
|
|
Power supply/plug
|
220V/AC110 optional power plug
|
|
Ink type
|
UV ink/food ink
|
|
Nozzle type
|
Epson XP600
|
|
File format
|
TFF/BMP/PDF/EPS/JPI/CAD
|
|
Color configuration
|
CMYK+W+V
|
|
Ink antifreeze
|
Equipped with heating function
|

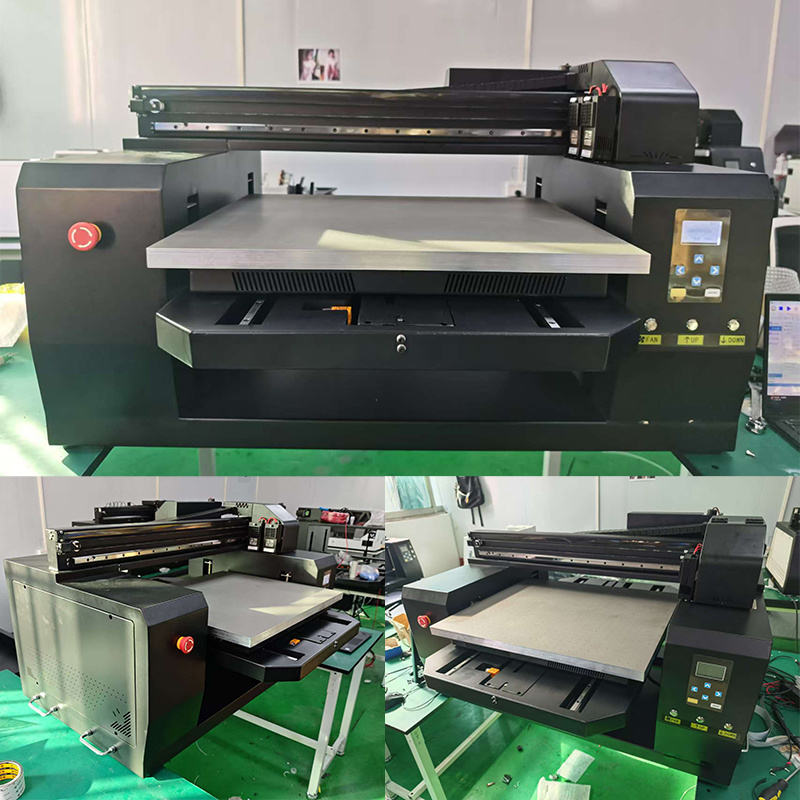

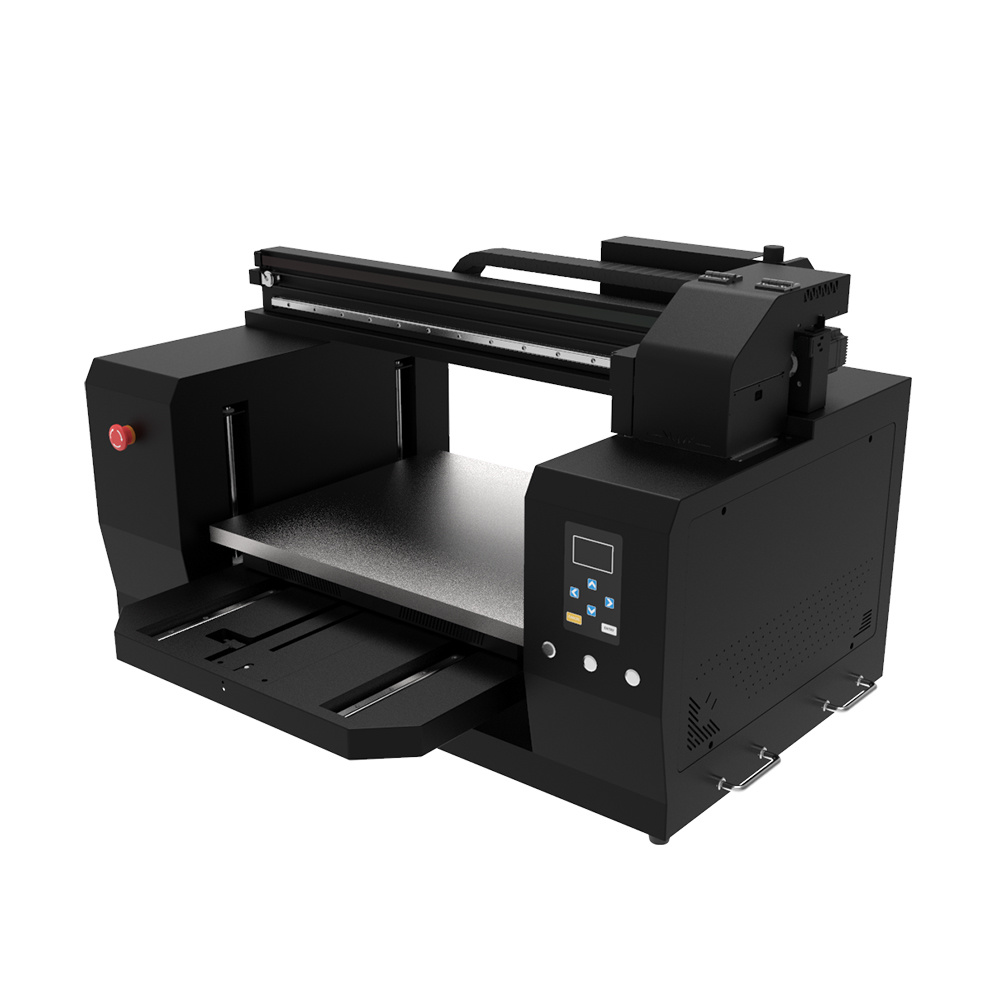

Product Introduction:
The 6050 UV Printer is designed for users who require robust and reliable performance. This model is a truly durable UV label printer, constructed to handle high-volume printing tasks with consistency. Users can effortlessly print directly onto an extensive range of materials—from plastics and metals to glass and leather—without any pre-treatment, thanks to its advanced UV ink technology. The experience is streamlined and efficient, eliminating the need for plate making and allowing you to go from design to a finished, high-resolution label in a single step. This capability makes it an outstanding quality UV label printer for businesses that demand both versatility and exceptional color fidelity in their output.
Focusing on the user, the printer incorporates intelligent features that ensure smooth operation and minimize downtime. The automatic nozzle cleaning and protection system maintains printhead health, guaranteeing consistent droplet formation and preventing clogs. The lifting platform and adjustable settings provide the flexibility to handle items of varying thicknesses with ease. Built with a sturdy single and double guide rail transmission system, this durable UV label printer offers the stability needed for precise, high-speed printing up to 10 square meters per hour. It is a workhorse machine designed for demanding applications, providing a user-friendly experience that prioritizes both exceptional results and operational reliability.

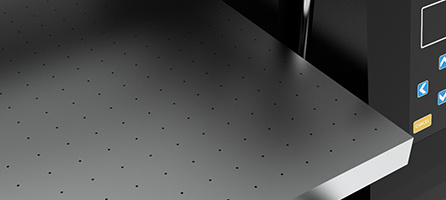

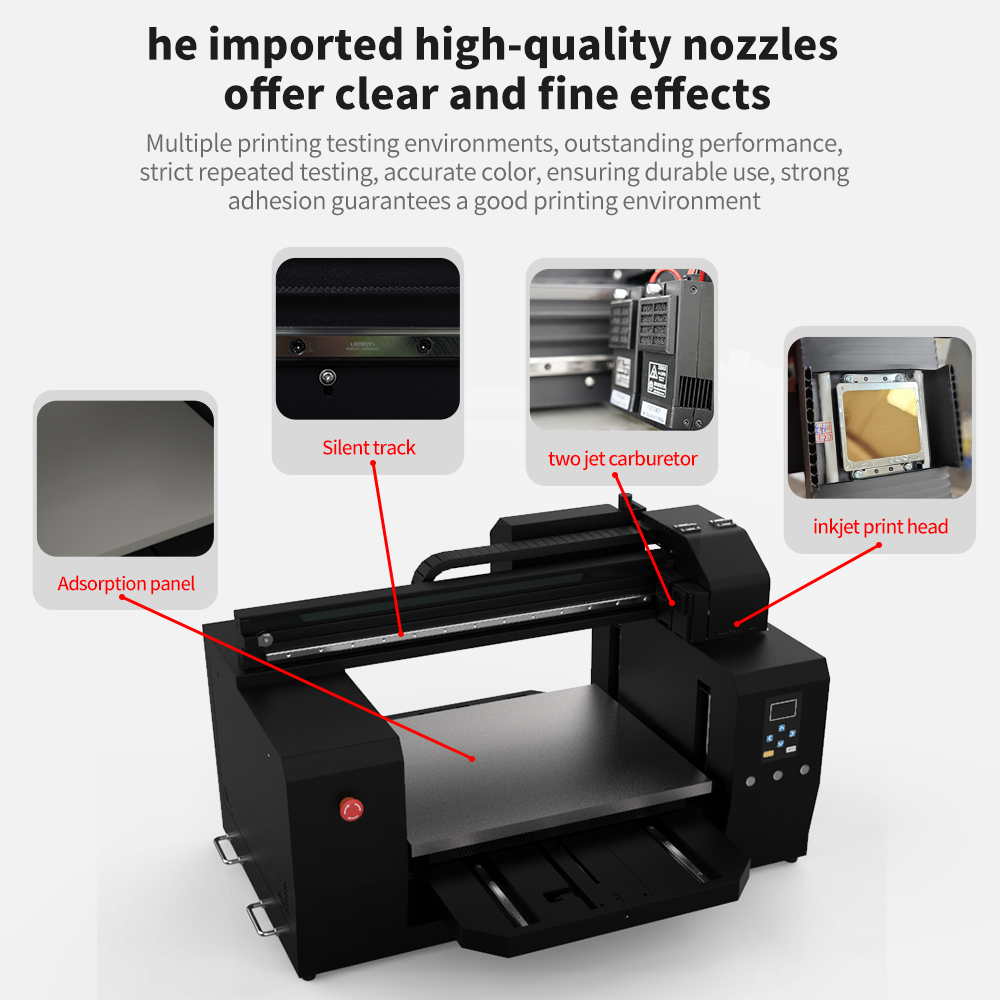

Vacuum Table
PTEF high quality A1 60*50CM Vacuum table with 36mm thickness, can print on paper, UV DTF AB FILM, golden silver film, leather and sheet etc.

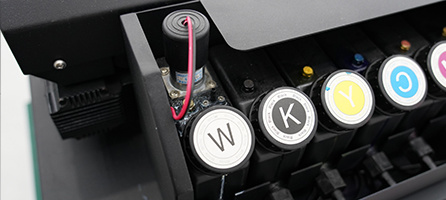

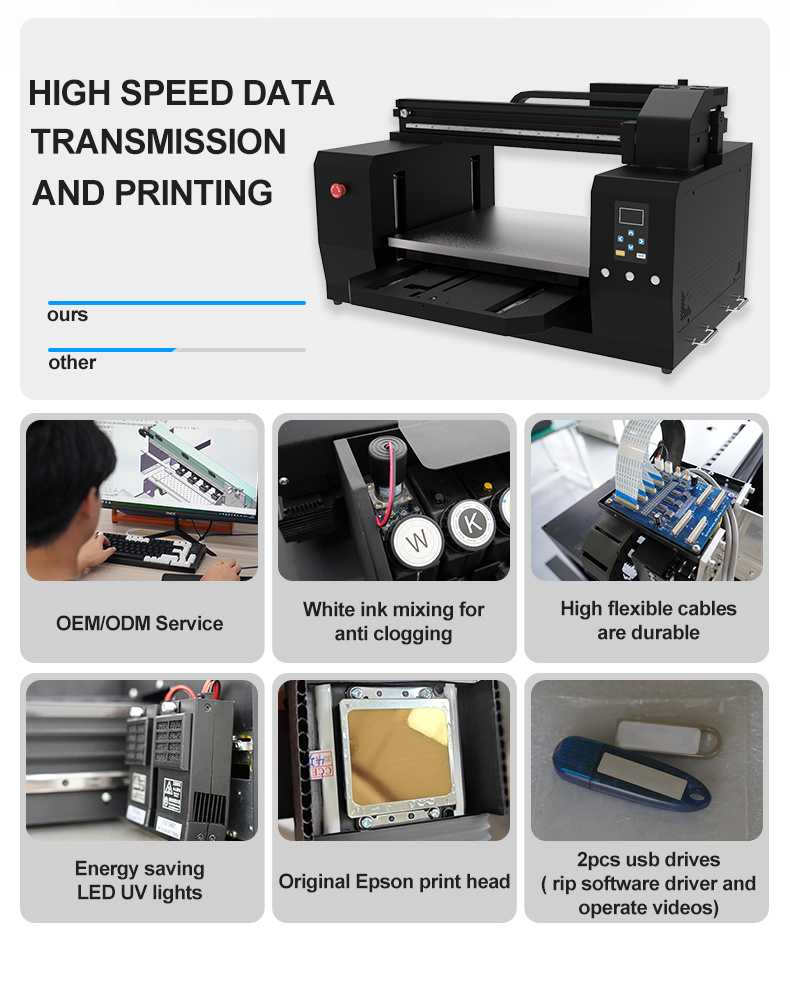

White Ink Stirring
White ink stirring system can help white head clog, and the stirring frequency can be set up in system.

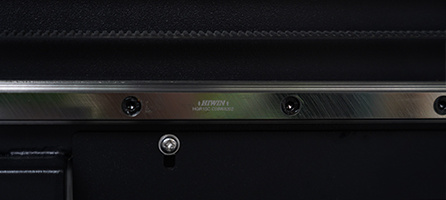

HIWIN Silent Guide Rails
The HIWIN guide rails from Taiwan. HI-WIN 3.5 cm straight square rail on X axis which very silence and firm even decade using.

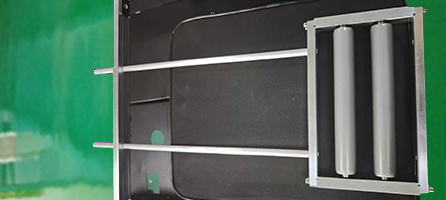

Support Rotary and Flatbed Printing
Not only can print on flat materials like phone case, metal, glass, it also can directly print on bottles, cylinder with rotary device.

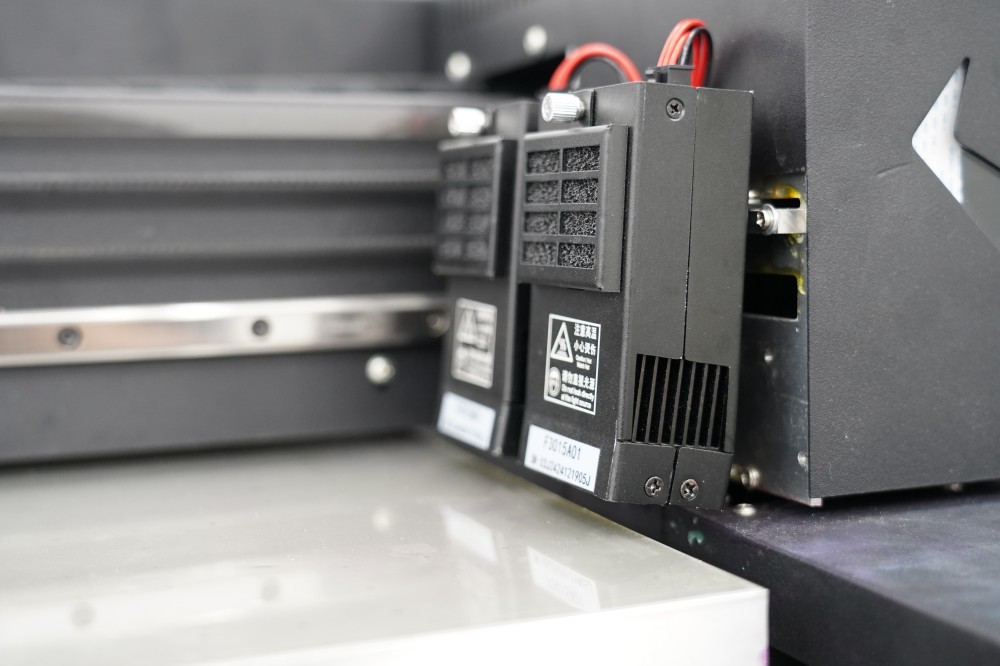

UV Led Curing System
Working time is longer than 20000 hours,energy conservation and environment protection

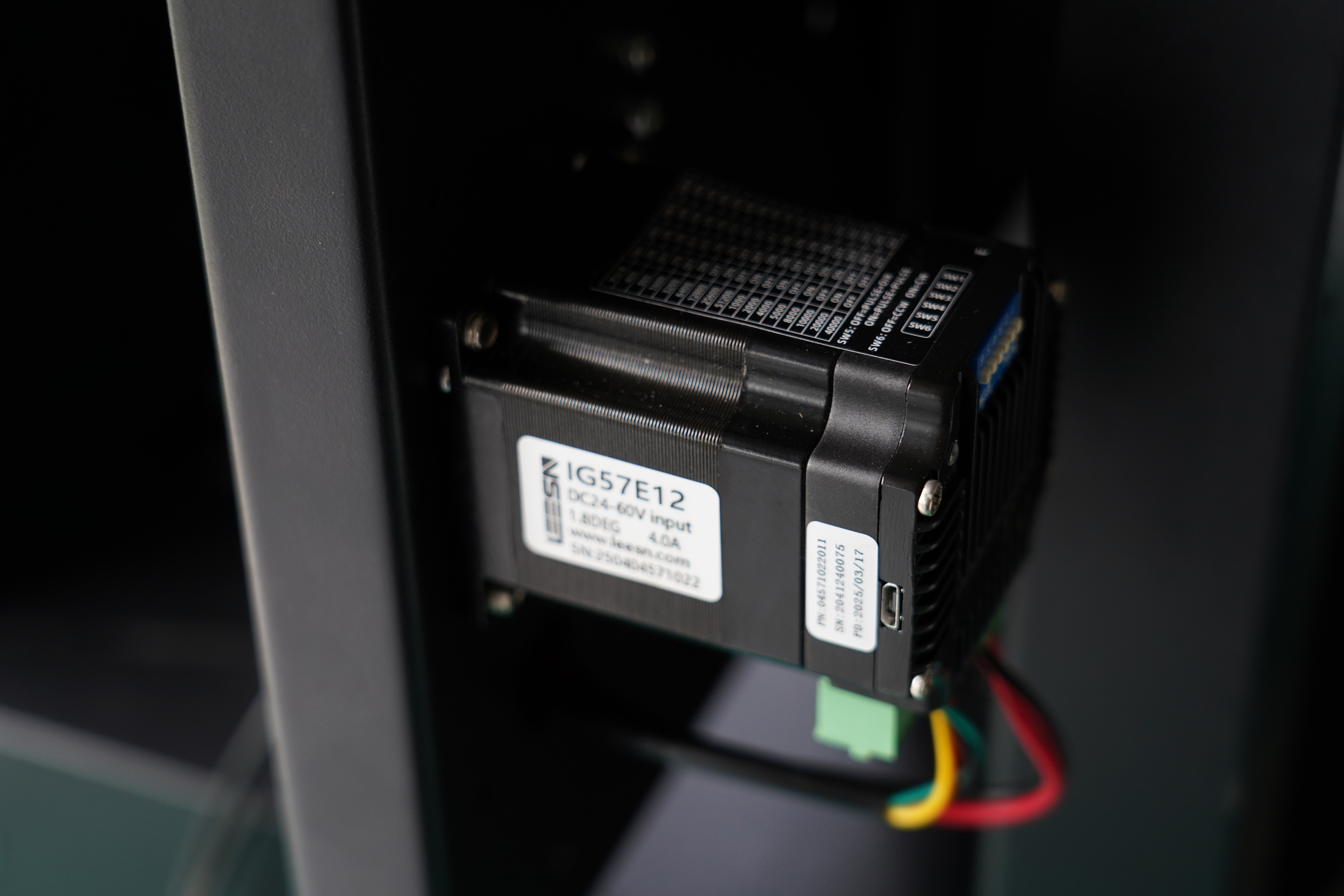

Servo Motor
Integrated design, smaller size lower noise and heating
Strong anti-interference capability, smoother operation

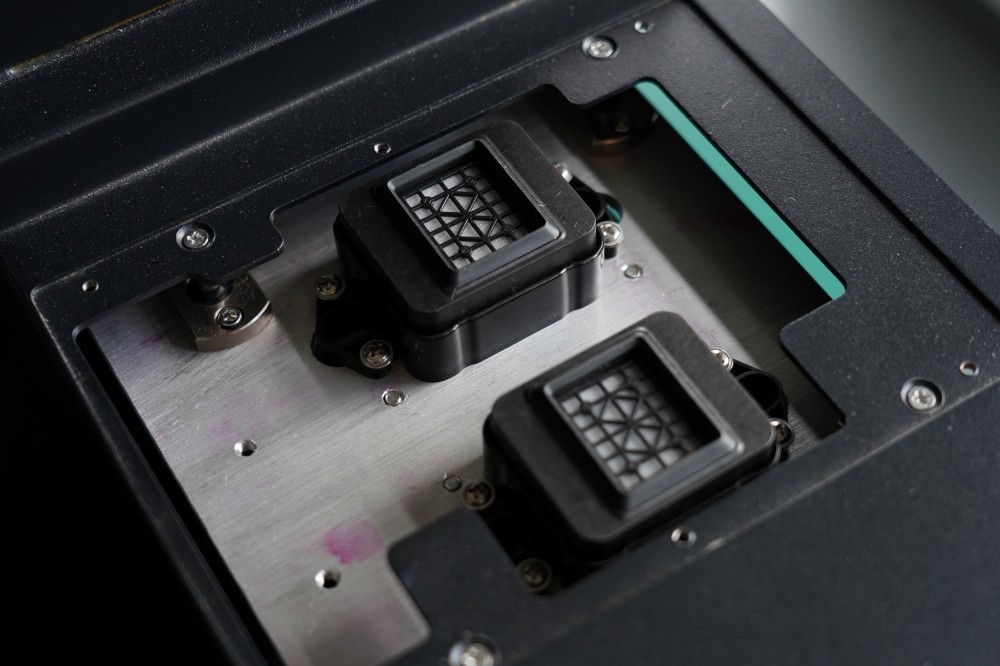

Aluminium CNC Cap Station
Aluminium CNC cap station is more longer life and easy to operate, which is all in one auto up and down.
Automatically printhead cleaning and moisturizing.
FAQ
1. who are we?
We are based in Guangdong, China, sell to Domestic Market(60.00%),North America(20.00%),Western Europe(15.00%),Eastern Europe(5.00%). about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Plate Hot Stamping Machine; Offset Hot Stamping Printer, UV Printer
4. why should you buy from us not from other suppliers?
1、The company integrates research and development,production and sales as an integrated business model,which greatly reduces consumers' purchase of finished products.
2、Short production time and quick cycle of large goods.
3、Professional after-sales
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,Western Union,Cash;
Professional Technical Support Capabilities
KECAI 6050 Multi-function Pen Bottle Mobile Case Crystal Label UV Printer
Product Features ■UV printer is a high-tech, plate free, full-color digital printing machine that is not limited by materials. Color photo level printing can be applied to T-shirts, sliding doors, cabinet doors, sliding doors, glass, panels, various signs, crystals, PVC, acrylic, metal, plastic, stone, leather, and other surfaces. ■No need for plate making to complete printing in one go, beautiful and rich colors, wear-resistant, UV resistant, simple and convenient operation, fast printing image speed, fully in line with industrial printing standards.
